Instrumentation Fittings

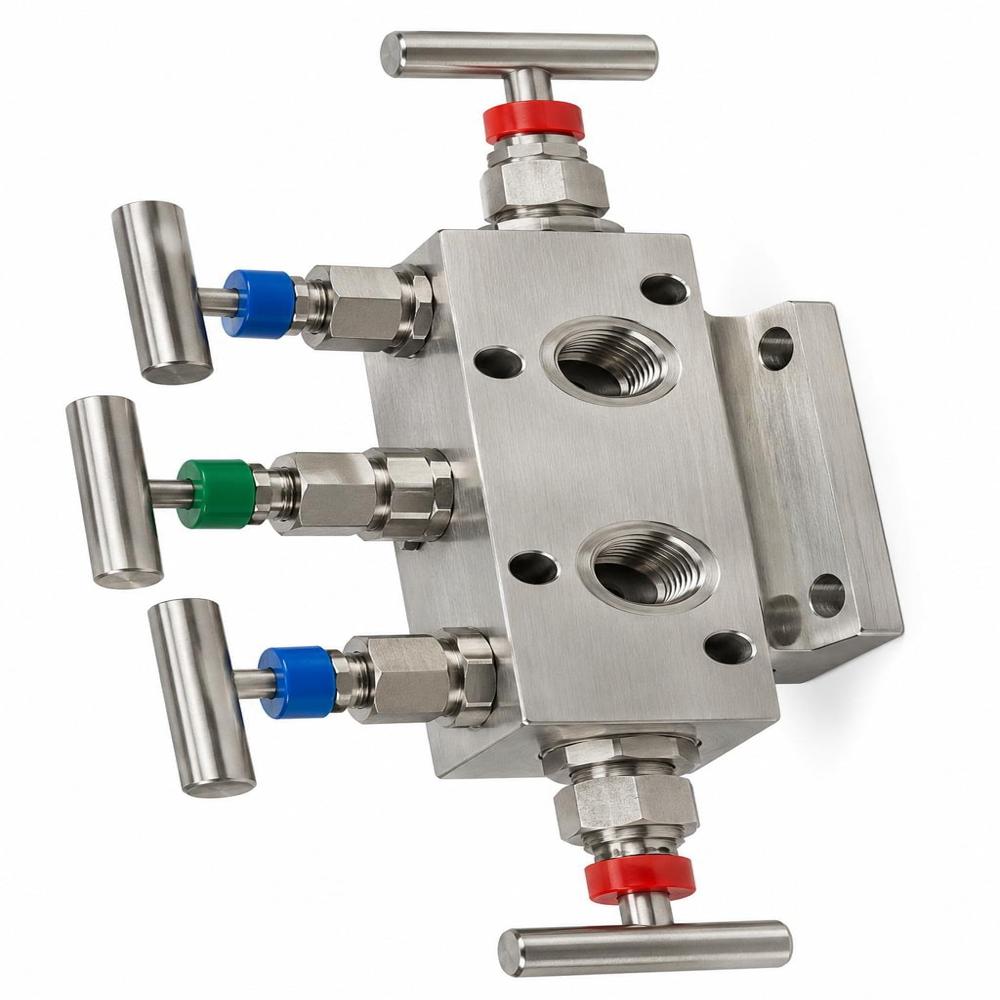

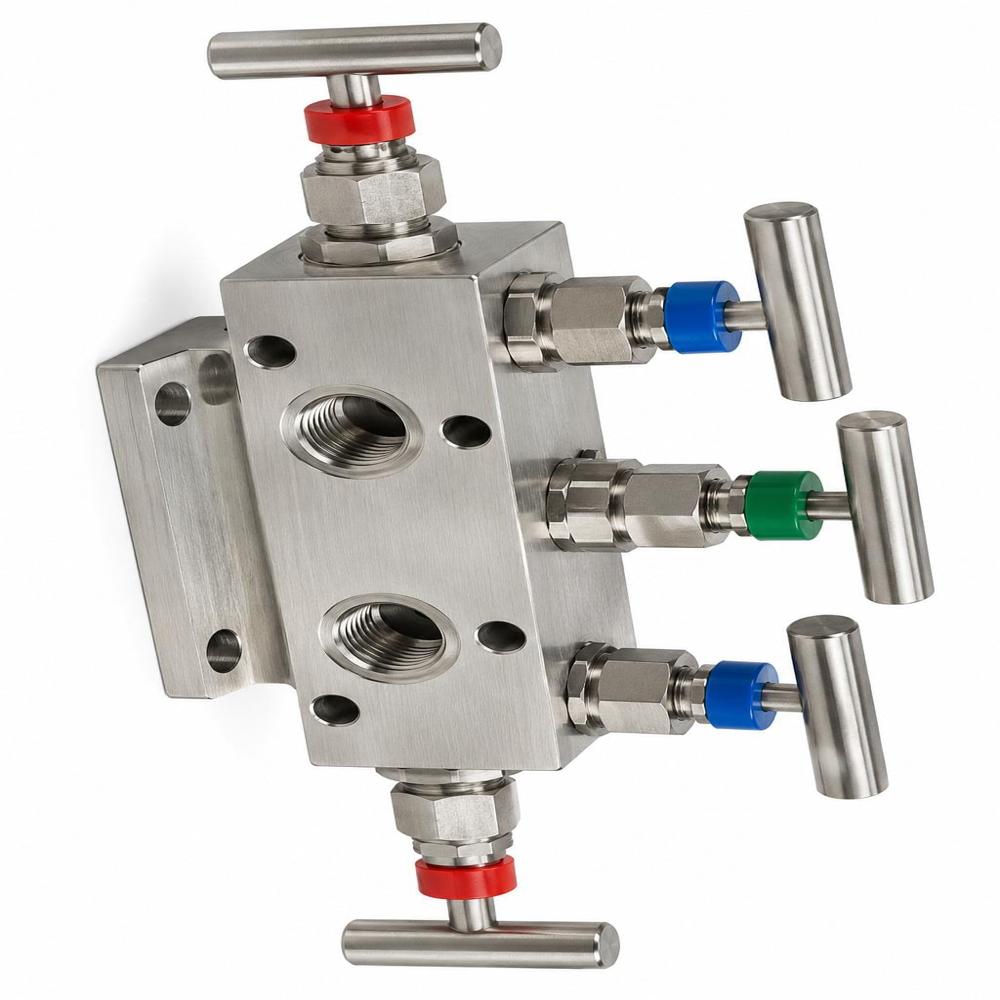

• Application
• Industrial Instrumentation & Pressure Measurement

• Capacity
• High Pressure Handing Pcs/hr

• Coating Type
• Uncoated, natural finish (can be coated if requested)

• Color
• Silver

• Composition
• Fe, 15-17% Cr, 1.2-2.0% Ni, 0.12-0.20% C, max 1.0% Mn, max 1.0% Si, max 0.04% P, max 0.03% S

• Connection Type
• Female Thread ( NPT / BSP )

• Corrosion Resistant
• YES

• Diameter
• 1/2'' Millimeter (mm)

• Dimension (L*W*H)
• Standard Millimeter (mm)

• End Type
• NPT Female Thread / Flange

• Features
• High Pressure, Leak Proof, Corrosion Resistant, Durable

• Finish Type
• Smooth/Polished/Matte depending on surface finish

• Fittings
• Flanges

• Grade
• SS 316 / 316L

• Hardness
• 217-248 HB (Brinell) or 22-28 HRC

• Heat Resistance
• Yes

• Inside Diameter
• 1/2'' Millimeter (mm)

• Length
• Standard Yard

• Material
• SS 316

• Material Composition %
• Cr 15-17, Ni 1.2-2.0, C 0.12-0.20, Mn 1.0, Si 1.0, P 0.04, S 0.03, Fe balance

• Material Grade
• SS 316 / 316L

• Outer Diameter
• N/A Millimeter (mm)

• Pipe Type
• High Pressure Instrumentation Pipe Line

• Port Size
• 1/2''

• Pressure Ratings
• 6000 PSI

• Product Form
• Hot Rolled / Cold Rolled Plate

• Product Name
• Other, 431 Stainless Steel Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular/Plate

• Size
• Custom sizes available

• Steel Product Type
• Other, Plate

• Steel Standard
• Other, ASTM A240 / ASME SA240

• Steel Type
• Stainless Steel

• Surface
• 2B, BA, No.1, No.4, or Polished Finish

• Surface Finish
• Matt / Mirror Finish / Machined

• Tensile Strength
• 760 MPa - 930 MPa

• Thickness
• 2mm to 100mm (customizable)

• Thread Type
• NPT / BSP

• Usage
• Differential Pressure Transmitter & Pressure Gauges

• Wall Thickness
• Standard Millimeter (mm)

• Warranty
• 1 Year

• Weight
• Varies with dimension and thickness, standard density ~7.8 g/cm3

• Working Presssure
• up to 6000 PSI

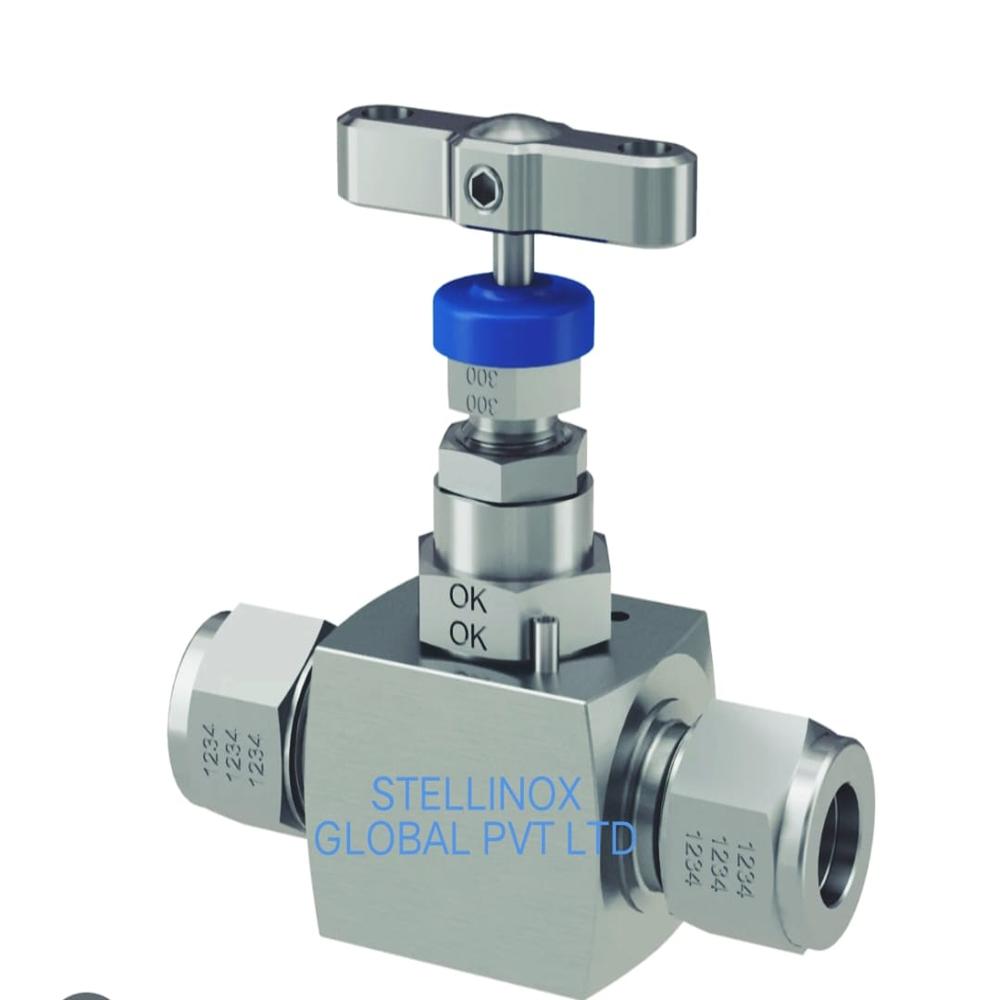

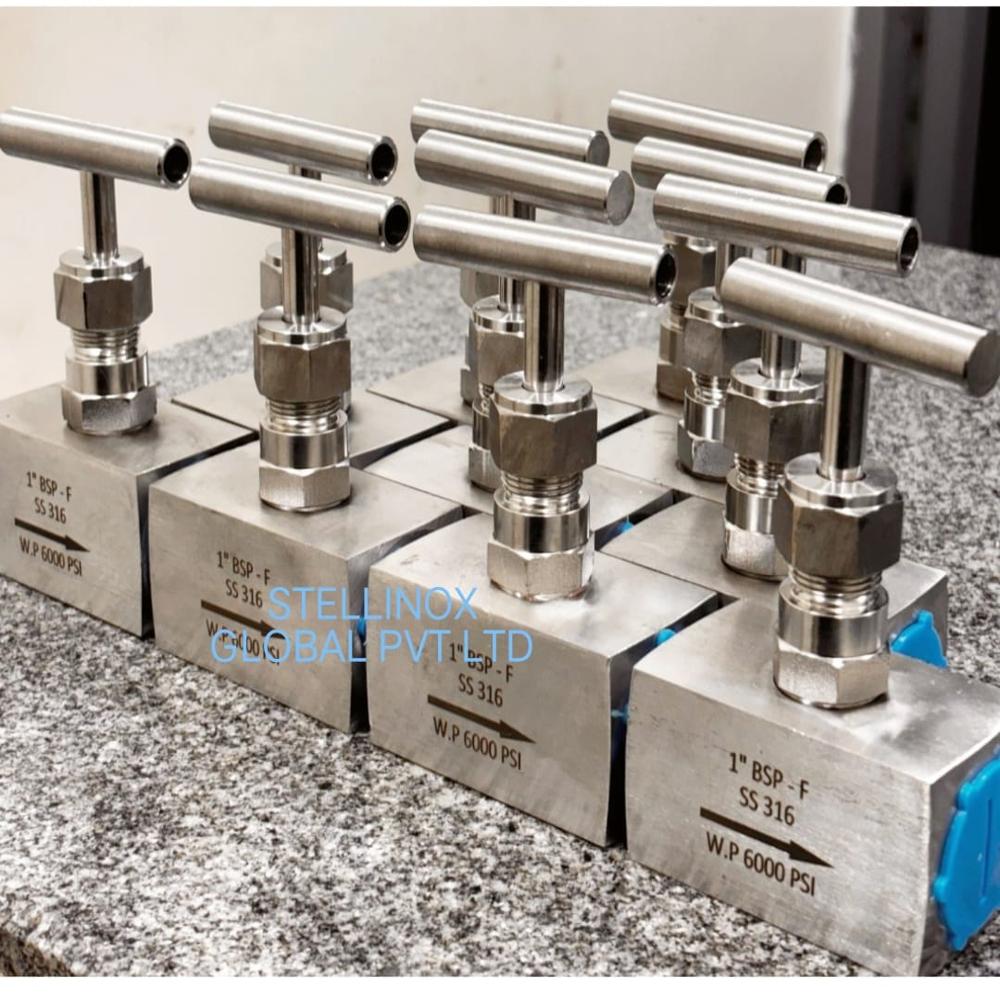

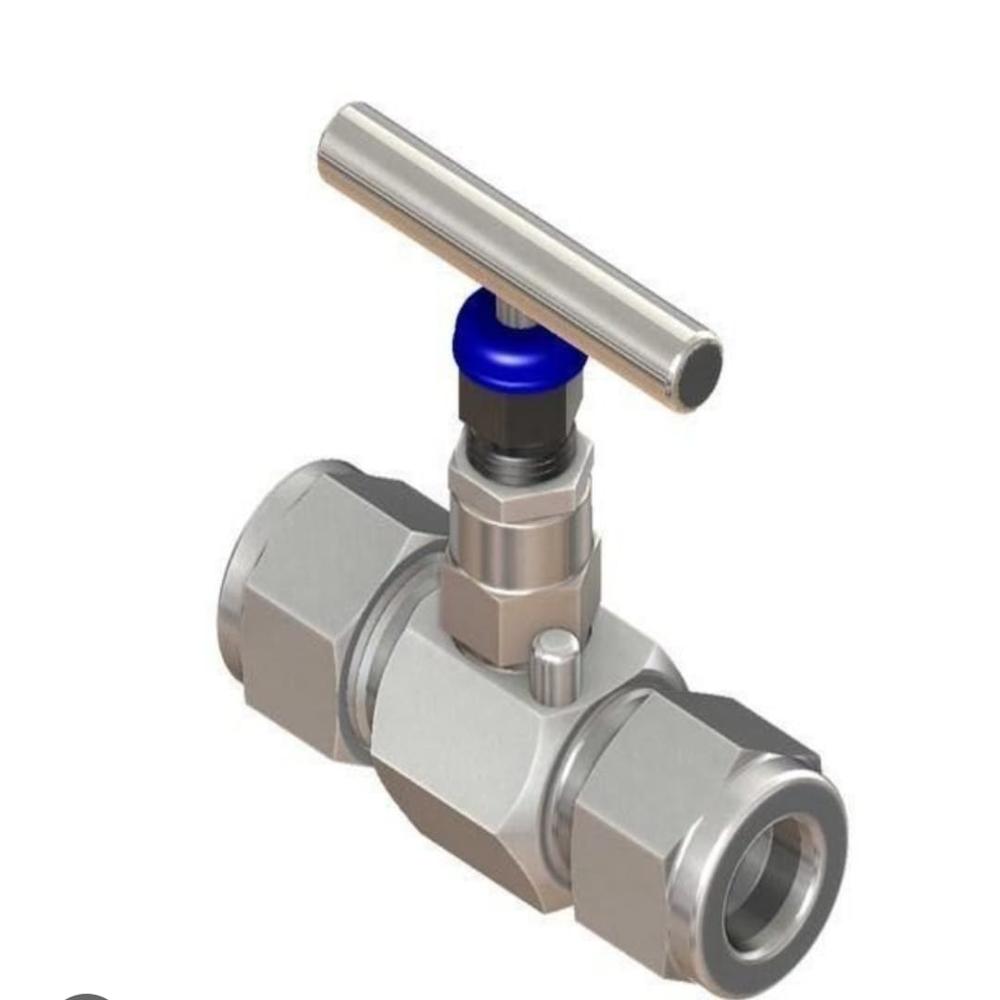

• Application
• Process Instrumentation. Hydraulic & Flow Regulation

• Capacity
• High Pressure Liquid, & Gas Handing Pcs/hr

• Color
• Silver

• Connection Type
• Female Screwed ( NPT / BSP )

• Corrosion Resistant
• Yes

• Diameter
• 1/4'' to 1'' Millimeter (mm)

• Dimension (L*W*H)
• Standard Barstock Dimensions Millimeter (mm)

• End Type
• Screwed Female / Male -Female

• Features
• High Pressure, Bubble -Tight Shutoff, Corrosion Resistant

• Fittings
• Flanges

• Grade
• SS 316 / SS 316L

• Length
• Standard / Custom Millimeter (mm)

• Material
• S S 316 / SS 316L

• Material Grade
• SS 316

• Outer Diameter
• N/A Millimeter (mm)

• Pipe Type
• High Pressure Instrumentation Line

• Port Size
• 1/4'', 3/8'', 1/2'', 3/4'', 1''

• Pressure Ratings
• 6000 PSI

• Shape
• Square body

• Size
• 1/4'' TO 1'' NPT / BSP Female

• Surface Finish
• Matt / Machined Finish

• Tensile Strength
• High Tensile Megapascals (MPa )

• Thread Type
• NPT / BSP / BSPT

• Usage
• Oil & Gas, Chemical Plants, Hydraulic Power Units, Pressure Gauge Isolation

• Wall Thickness
• Heavy Duty Gauge

• Warranty
• 1 Year

• Working Presssure
• up to 6000 PSI
