Stainless Steel Butt Weld Pipe Fittings

Embrace the reliability of our Stainless Steel Butt Weld Pipe Fittings, crafted by a leading manufacturer, trusted supplier, and prominent trader in the industry, delivering products like the Stainless Steel 304 Butt Weld Fittings and Stainless Steel 304L Butt Weld Fittings. When you buy or purchase from us, you are guaranteed superb corrosion resistance, perfect dimensional accuracy, and astounding durability that stands out from competitors. Our fittings are engineered for seamless performance, providing leak-proof connections and easy installation, making them an ideal choice for a diverse range of industrial applications. Choose Stainless Steel Butt Weld Pipe Fittings for their hot deal on maximum strength-to-weight ratio, unmatched longevity in harsh environments, and low maintenance needs, ensuring value and cost-effectiveness all in one. With our commitment to quality and supply ability spanning all of India, these fittings truly set the standard for excellence in the market. Discover the perfect solution for your piping needs and experience the best the industry has to offer with our extensive product range, tailored for application in various process and utility pipelines.

Stainless Steel 304 Butt Weld Fittings

MOQ : 100 Kilograms

  • Application
  • other, Chemical, Petrochemical, Oil & Gas, Food, Pharmaceutical
  • Bend Radius
  • 1.5D, 3D (for Elbows)
  • Coating Type
  • Uncoated
  • Color
  • Silver
  • Connection
  • Other, Welded
  • Connection Type
  • Butt Weld
  • Diameter
  • 1/2 to 24 (Nominal Bore)
  • Flexibility
  • Rigid
  • Length
  • Depends on type (e.g., Radius for Elbow, Length for Reducer)
  • Material
  • Stainless Steel
  • Material Grade
  • 304, 304L
  • Outer Diameter
  • 1/2 to 24 (12.7 mm to 610 mm)
  • Product Type
  • Other, Butt Weld Fittings
  • Rated Pressure
  • Depends on Schedule (Up to 80S)
  • Sealing Type
  • Metal-to-Metal
  • Section Shape
  • Round
  • Shape
  • Other, Elbow, Tee, Reducer, Cap (As per product)
  • Standard
  • Other, ASTM A403 / ASME SA403
  • Surface Treatment
  • Other, Pickled, Passivated
  • Temperature Range
  • -196C to 600C
  • Tensile Strength
  • 515 MPa min
  • Thickness
  • Sch 10S, Sch 20, Sch 40S, Sch 80S (as per requirement)
  • Tolerance
  • 1%
  • Usage
  • Pipe Fitting for Fluid Handling
  • Yield Strength
  • 205 MPa min

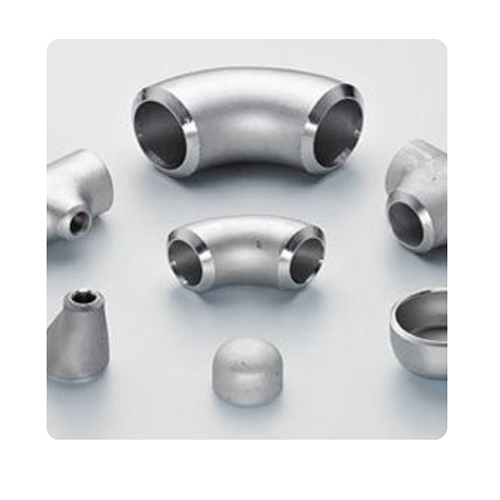

Stainless Steel 304L Butt Weld Fittings

  • Application
  • other, Petroleum, Gas, Power, Chemical, Construction
  • Bend Radius
  • Standard or custom as per fitting
  • Coating Type
  • Uncoated
  • Color
  • Silver
  • Connection
  • Other, Butt Weld
  • Connection Type
  • Welded
  • Diameter
  • 1/2 to 24
  • Flexibility
  • Rigid
  • Length
  • As per standard or custom
  • Material
  • Other , Stainless Steel 304L
  • Material Grade
  • 304L
  • Outer Diameter
  • 1/2 to 24 (12.7mm to 610mm)
  • Product Type
  • Other, Butt Weld Fitting
  • Rated Pressure
  • Class 150# to 900#
  • Sealing Type
  • Metal to Metal
  • Section Shape
  • Round
  • Shape
  • Other, Elbow, Tee, Reducer, Cap, Coupling
  • Standard
  • Other, ASTM A403 / ASME SA403
  • Surface Treatment
  • Other, Pickled, Annealed
  • Temperature Range
  • -196C to 850C
  • Tensile Strength
  • 515 MPa min
  • Thickness
  • SCH10, SCH20, SCH40, SCH80 (as per customer requirement)
  • Tolerance
  • +/- 0.2 mm
  • Usage
  • Pipeline, Industrial, Chemical Processing, Water Supply
  • Yield Strength
  • 205 MPa min
