Stainless Steel Fittings

• Application
• other, Water, Gas, Chemical Transmission Lines

• Bend Radius
• 1.5D or 2D as per fitting

• Coating Type
• Uncoated; Natural Finish

• Color
• Silver

• Connection
• Other, Welded & Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 12.7 mm to 114.3 mm

• Flexibility
• Rigid

• Length
• As per fitting: generally 35 mm to 110 mm

• Material
• Stainless Steel

• Material Grade
• SS304, SS316

• Outer Diameter
• 1/2 inch to 4 inch

• Product Type
• Other, Stainless Steel Fitting

• Rated Pressure
• Up to 150 PSI

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling (as per image)

• Standard
• Other, ASTM A403, ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 425C

• Tensile Strength
• 515 MPa min

• Thickness
• 1.5 mm to 4 mm (depending on fitting)

• Thread Type
• NPT/BSP

• Tolerance
• 0.05 mm

• Usage
• Pipe Connection, Plumbing, Industrial Applications

• Yield Strength
• 205 MPa min

• Application
• other, Plumbing, Construction, Industrial Piping

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 50 mm

• Flexibility
• Rigid

• Length
• 25 mm

• Material
• Stainless Steel

• Material Grade
• SS304/SS316

• Outer Diameter
• 50 mm

• Product Type
• Other, End Cap

• Rated Pressure
• Up to 150 PSI

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 450C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 3 mm

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting/Sealing Pipe Ends

• Yield Strength
• 205 MPa (min)

• Application
• other, Chemical, Oil & Gas, HVAC, Water Treatment, Food Processing

• Coating Type
• None (natural finish)

• Color
• Silver/Grey

• Connection
• Other, Press Fit, Threaded

• Connection Type
• Push-in, threaded

• Diameter
• 6 mm to 120 mm

• Flexibility
• Rigid

• Length
• 10 mm to 100 mm

• Material
• Stainless Steel

• Material Grade
• 304, 316, 316L, 321, 347

• Outer Diameter
• 6 mm to 120 mm

• Product Type
• Other, Tube Plug

• Rated Pressure
• Up to 150 bar

• Sealing Type
• Metal-to-metal, optionally with gasket

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A276 / A479, DIN, EN, JIS, GB

• Surface Treatment
• Other, Polished, Pickled, Passivated

• Temperature Range
• -40C to +450C

• Tensile Strength
• 480 MPa minimum

• Thickness
• 1 mm to 5 mm

• Thread Type
• BSP, NPT

• Tolerance
• 0.02 mm

• Usage
• Sealing tube ends, industrial piping

• Yield Strength
• 205 MPa minimum

• Application
• other, Oil & Gas, Petrochemical, Construction

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Male Threaded Both Ends

• Diameter
• Varies as per OD

• Flexibility
• Rigid

• Length
• 2 inch to 12 inch

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 1/8 inch to 8 inch

• Product Type
• Other, Pipe Nipple

• Rated Pressure
• Up to 150 PSI

• Sealing Type
• Thread Sealant Required

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A312 / A403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 425C

• Tensile Strength
• 515 MPa Min

• Thickness
• 2 mm - 6 mm

• Thread Type
• NPT/BSP

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Industrial Piping, Gas & Water Lines

• Yield Strength
• 205 MPa Min

• Application
• other, Water, Air, Oil, Gas Lines

• Bend Radius
• Equal to pipe diameter

• Color
• Metallic Silver

• Connection
• Other, Male Threaded

• Connection Type
• Threaded

• Diameter
• 1/4 to 2

• Flexibility
• Rigid

• Length
• Varies as per size (30 mm to 75 mm typical)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 1/4 to 2 (customizable)

• Product Type
• Other, SS Male Elbow

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (90 angle)

• Standard
• Other, ASTM A182 / DIN / ANSI / JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 515 MPa minimum

• Thickness
• 3 mm (typical)

• Thread Type
• NPT / BSPT / BSP

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting / Plumbing / Industrial Use

• Yield Strength
• 205 MPa minimum

• Application
• other, Pipe Fitting Systems

• Bend Radius
• 1D, 1.5D, 2D and Custom

• Coating Type
• Uncoated

• Color
• Silver/Grey

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• DN15 - DN600

• Flexibility
• Rigid

• Length
• Custom/As Required

• Material
• Stainless Steel

• Material Grade
• SS304/SS316/SS304L/SS316L

• Outer Diameter
• 1/2 inch to 24 inch (12.7 mm - 609.6 mm)

• Product Type
• Other, Pipe Elbows

• Rated Pressure
• SCH10-SCH160/PN6-PN40

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow (90/45)

• Standard
• Other, ASTM A403/ANSI B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• 520 MPa Minimum

• Thickness
• 2 mm - 12 mm

• Thread Type
• Not Applicable (Welded)

• Tolerance
• 0.5 mm

• Usage
• Plumbing, Industrial, Petrochemical Applications

• Yield Strength
• 205 MPa Minimum

• Application
• other, Water, Oil, Gas, Chemical Processing

• Bend Radius
• Standard per size

• Coating Type
• No external coating

• Color
• Silver

• Connection
• Other, Buttweld / Socket Weld

• Connection Type
• Welded

• Diameter
• 12.7 mm to 609.6 mm

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316 / SS 202

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, SS Pipe Tee

• Rated Pressure
• up to 3000 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Tee (T-shaped)

• Standard
• Other, ASTM A403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 800C

• Tensile Strength
• 520 MPa (min)

• Thickness
• Sch 10, Sch 20, Sch 40

• Thread Type
• Not threaded

• Tolerance
• 0.5 mm

• Usage
• Industrial pipe fittings

• Yield Strength
• 205 MPa (min)

• Application
• other, Pipe Fitting, Fluid Transfer

• Color
• Metallic Silver

• Connection
• Other, Threaded/Union

• Connection Type
• Union

• Diameter
• 1/8 to 4 Inch

• Flexibility
• Rigid

• Length
• As per specification

• Material
• Other , Stainless Steel (SS)

• Material Grade
• SS304/SS316/SS316L

• Outer Diameter
• 1/8 Inch to 4 Inch

• Product Type
• Other, Union Cross Tee

• Rated Pressure
• 150 PSI - 6000 PSI

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, ASTM, DIN, JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 2 mm - 8 mm

• Thread Type
• BSP, NPT, BSPT

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Industrial, Chemical Processing

• Yield Strength
• 205 MPa (min)

• Application
• other, Industrial, Plumbing, Water Supply

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Female - Female

• Diameter
• 1 inch

• Flexibility
• Rigid

• Length
• 50 mm

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 25 mm

• Product Type
• Other, SS Coupling

• Rated Pressure
• 150 PSI

• Sealing Type
• Threaded Seal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa

• Thickness
• 3 mm

• Thread Type
• BSP

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting

• Yield Strength
• 215 MPa

• Application
• other, Oil & Gas, Water Supply, Food Processing, Pharmaceutical

• Bend Radius
• Standard as per fitting type

• Coating Type
• None (Natural Finish)

• Color
• Silver

• Connection
• Other, Welded / Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 6 mm - 630 mm

• Flexibility
• Rigid

• Length
• Customized / As required

• Material
• Stainless Steel

• Material Grade
• 304, 304L, 316, 316L, 321, 347, 310

• Outer Diameter
• 6 mm - 630 mm

• Product Type
• Other, Pipe Fitting

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Depends on connection (Thread/Pipe Sealant, Weld)

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupler, Reducer, Cap

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished / Pickling

• Temperature Range
• -196C to 600C

• Tensile Strength
• 520 MPa min

• Thickness
• 1 mm - 12 mm

• Thread Type
• NPT, BSPT, BSP, Metric

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Industrial, Chemical, Petrochemical

• Yield Strength
• 205 MPa min

• Application
• other, Water, Oil, Gas, Chemical Industries

• Bend Radius
• 1D, 1.5D, 2D, 3D or Custom

• Coating Type
• No Coating

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Varies as per requirement

• Flexibility
• Rigid

• Length
• Custom Lengths Available

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 24 inch (custom available)

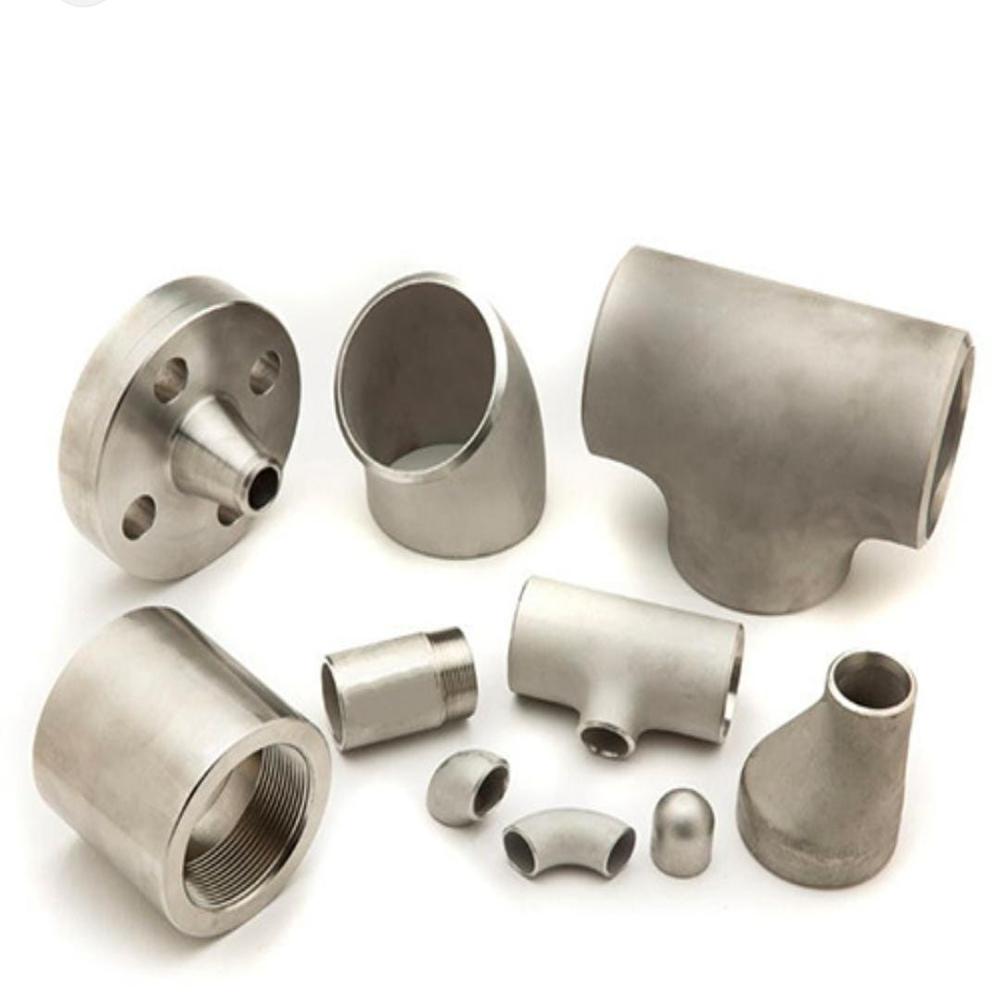

• Product Type
• Other, Pipe Bend

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metallic

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -40C to 600C

• Tensile Strength
• 520 MPa min

• Thickness
• Up to 20 mm

• Tolerance
• 0.5 mm

• Usage
• Industrial, Plumbing, Piping

• Yield Strength
• 205 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power, Chemicals

• Bend Radius
• Standard as per ASME

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• Nominal Pipe Size (NPS) 1/2 to 24

• Flexibility
• Rigid

• Length
• As per requirement / Standard lengths

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L / 321

• Outer Diameter
• 1/2 inch - 24 inch (21.3 mm - 609.6 mm)

• Product Type
• Other, Pipe Stub Ends Seamless

• Rated Pressure
• 150# up to 2500#

• Sealing Type
• Metal-to-metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 800C

• Tensile Strength
• 515 MPa min

• Thickness
• 2 mm - 35 mm

• Tolerance
• 0.5 mm

• Usage
• Industrial piping

• Yield Strength
• 205 MPa min

• Application
• other, Plumbing, Industrial, Chemical, Oil & Gas

• Color
• Silver

• Connection
• Other, Threaded/Welded

• Connection Type
• Female

• Diameter
• 25 mm - 100 mm

• Flexibility
• Rigid

• Length
• 50 mm

• Material
• Stainless Steel

• Material Grade
• SS304/SS316

• Outer Diameter
• 25 mm - 100 mm

• Product Type
• Other, Pipe Coupling

• Rated Pressure
• Up to 20 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A403 / A182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 250C

• Tensile Strength
• 515 MPa min

• Thickness
• 3 mm

• Thread Type
• BSP/NPT

• Tolerance
• 0.1 mm

• Usage
• Joining SS Pipes

• Yield Strength
• 205 MPa min

• Application
• other, Plumbing, Chemical, Oil & Gas Industries

• Bend Radius
• 1.5D / 2D / Custom

• Coating Type
• None / Self Finish

• Color
• Silver

• Connection
• Other, Welded & Seamless

• Connection Type
• Butt Weld

• Diameter
• 12.7 mm to 609.6 mm

• Flexibility
• Rigid

• Length
• Variable (Depends on specification)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, Stainless Steel Elbow

• Rated Pressure
• Up to 400 bar

• Sealing Type
• Welded Seal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 800C

• Tensile Strength
• 520 MPa - 620 MPa

• Thickness
• 2 mm to 10 mm

• Thread Type
• N/A (primarily welded)

• Tolerance
• 0.2 mm

• Usage
• Industrial Pipe Fitting

• Yield Strength
• 205 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Treatment

• Coating Type
• None / Passivated

• Color
• Metallic Silver

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• As required (NPS sizes available)

• Flexibility
• Rigid

• Length
• Standard or custom as required

• Material
• Stainless Steel

• Material Grade
• 304 / 316 / 316L

• Outer Diameter
• As per size specified (commonly 1/2 to 4)

• Product Type
• Other, Socket Weld Coupling Half

• Rated Pressure
• 3000# / 6000#

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +425C

• Tensile Strength
• 515 MPa minimum (for SS 304)

• Thickness
• As per specification (typically 5 mm to 12 mm)

• Thread Type
• N/A (Socket weld, not threaded)

• Tolerance
• 0.05 mm

• Usage
• Pipe Joint / Industrial Fitting

• Yield Strength
• 205 MPa minimum (for SS 304)

• Application
• other, Water, Oil, Gas Pipeline

• Color
• Metallic Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 150 mm

• Flexibility
• Rigid

• Length
• 20 mm

• Material
• Stainless Steel

• Material Grade
• SS304/SS316

• Outer Diameter
• 150 mm

• Product Type
• Other, Pipe Flange

• Rated Pressure
• PN16

• Sealing Type
• Gasket

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASME/ANSI B16.5

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +300C

• Tensile Strength
• 520 MPa

• Thickness
• 10 mm

• Tolerance
• 0.1 mm

• Usage
• Industrial Piping

• Yield Strength
• 205 MPa

• Application
• other, Chemical, Petrochemical, Food Processing, Oil & Gas, Power Plants

• Bend Radius
• Standard as per fitting dimensions

• Coating Type
• Uncoated or as per customer request

• Color
• Silver / Metallic

• Connection
• Other, Butt Weld / Socket Weld

• Connection Type
• Butt Weld / Socket Weld

• Diameter
• 15 mm to 1200 mm

• Flexibility
• Rigid

• Length
• As per standard or customer specification

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L / Duplex & Super Duplex

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type
• Other, Reducer Fitting

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Concentric / Eccentric (as per requirement)

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished / Pickled / Sand Blasted

• Temperature Range
• -20C to 600C

• Tensile Strength
• 515 MPa minimum (for SS304)

• Thickness
• 2 mm - 10 mm

• Thread Type
• N/A (primarily weld type)

• Tolerance
• 0.1 mm

• Usage
• Joining pipe sections of different diameters

• Yield Strength
• 205 MPa minimum (for SS304)

• Application
• other, Chemical, Food Industry, Petrochemical, Water Pipeline

• Bend Radius
• Standard as per size

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 25 mm to 600 mm

• Flexibility
• Rigid

• Length
• 51 mm to 325 mm

• Material
• Stainless Steel

• Material Grade
• SS 304

• Outer Diameter
• 25 mm to 600 mm

• Product Type
• Other, Eccentric Reducer

• Rated Pressure
• Up to 40 bar

• Section Shape
• Round

• Shape
• Other, Eccentric

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Pickled and Passivated

• Temperature Range
• -20C to 450C

• Tensile Strength
• 520 MPa (min)

• Thickness
• 2 mm to 6 mm

• Tolerance
• 0.2 mm

• Usage
• Pipe Fitting/Industrial Application

• Yield Strength
• 205 MPa (min)

• Application
• other, Oil & Gas, Petrochemical, Chemical Industry, Power Plants

• Bend Radius
• 1.5D / 2D / Custom

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• Customized sizes

• Flexibility
• Rigid

• Length
• Custom as per requirement

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 inch to 48 inch

• Product Type
• Other, Stub Bend

• Rated Pressure
• Up to 40 Bar

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -50C to 600C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 2 mm to 20 mm

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting

• Yield Strength
• 205 MPa (min)

• Application
• other, Oil & Gas, Water, Chemical, Petrochemical, Food Industry, Plumbing

• Bend Radius
• As per fitting type

• Coating Type
• No Coating / Self Finish

• Color
• Silver / Metallic

• Connection
• Other, Threaded / Welded

• Connection Type
• Screwed, Socket Weld, Butt Weld

• Diameter
• 3 mm to 300 mm

• Flexibility
• Rigid

• Length
• Customized / As per standard

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L, SS321

• Outer Diameter
• 1/8 to 12 (3mm to 300mm)

• Product Type
• Other, Stainless Steel Casting Fittings

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metal to Metal / Gasketed

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Union, Nipple, Cross, Cap

• Standard
• Other, ASTM, DIN, JIS, EN, IS

• Surface Treatment
• Other, Shot Blasted / Pickled

• Temperature Range
• -20C to 800C

• Tensile Strength
• 520 MPa (min)

• Thickness
• 3 mm to 15 mm

• Thread Type
• BSP, NPT, BSPT

• Tolerance
• 0.01 mm

• Usage
• Pipe Fittings, Flow Control

• Yield Strength
• 205 MPa (min)

• Application
• other, Pipeline Fittings / High Pressure Applications

• Bend Radius
• Depends on Fitting Type; Elbows typically as per B16.11

• Coating Type
• Optional: Zinc, Hot Dip Galvanized, Epoxy

• Color
• Metallic Silver / Grey / Black

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• 6 mm - 114 mm

• Flexibility
• Rigid

• Length
• Custom Cut / Standard Length

• Material
• Other , Stainless Steel / Carbon Steel / Alloy Steel

• Material Grade
• 304, 304L, 316, 316L, A105, F11, F22, F304, F316

• Outer Diameter
• 1/8 inch to 4 inch (6 mm to 114 mm)

• Product Type
• Other, Socket Weld Fittings

• Rated Pressure
• Class 3000# / 6000# / 9000#

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Cross, Coupling, Cap, Reducer, Union

• Standard
• Other, ASTM A182 / ASME B16.11 / MSS SP-83 / ANSI B16.11

• Surface Treatment
• Other, Polished / Shot Blasted / Pickled / Passivated

• Temperature Range
• -20C to 600C

• Tensile Strength
• Up to 585 MPa (Depending on Material)

• Thickness
• Sch 5S, 10S, 40S, 80S, 160S

• Tolerance
• 0.1 mm

• Usage
• Industrial Piping / Hydraulic Systems / Oil & Gas / Power Plants

• Yield Strength
• Up to 260 MPa (Depending on Material)

• Application
• other, Pipeline connection, fluid transport, high-pressure systems

• Bend Radius
• Standard/As required

• Coating Type
• None (as per duplex specification)

• Color
• Silver / Metallic

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• As per specification

• Flexibility
• Rigid

• Length
• Up to 6 meters or as required

• Material
• Other , Duplex Stainless Steel

• Material Grade
• UNS S31803 / S32205

• Outer Diameter
• 1/2 inch to 24 inch (12.7 mm to 610 mm)

• Product Type
• Other, Pipe Fitting

• Rated Pressure
• Up to 6000 psi (depend on size & schedule)

• Sealing Type
• Metal to metal

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, ASTM A815 / ASME SA815

• Surface Treatment
• Other, Pickled and Passivated

• Temperature Range
• -50C to +300C

• Tensile Strength
• Min. 620 MPa

• Thickness
• 2 mm - 10 mm

• Thread Type
• N/A (Welded type)

• Tolerance
• 0.5 mm

• Usage
• Industrial piping, chemical processing, oil & gas, offshore

• Yield Strength
• Min. 450 MPa

• Application
• other, Gas, Oil, Water, Chemical, Steam Lines

• Bend Radius
• As per tube size and fitting type

• Color
• Silver

• Connection
• Other, Compression, Threaded

• Connection Type
• Compression, Threaded, Welded

• Diameter
• 3 mm to 50 mm

• Flexibility
• Rigid

• Length
• Customized, Standard Lengths up to 6 meters

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L

• Outer Diameter
• 1/8 to 2 (3 mm to 50 mm)

• Product Type
• Other, Tube Fitting

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Straight, Elbow, Tee, Cross

• Standard
• Other, ASTM A269, ASTM A213, DIN 2353

• Surface Treatment
• Other, Polished, Pickled

• Temperature Range
• -196C to +600C

• Tensile Strength
• 515 MPa (SS304)

• Thickness
• 0.5 mm to 3 mm

• Thread Type
• NPT, BSPT, BSP

• Tolerance
• 0.1 mm

• Usage
• Industrial, Hydraulic, Pneumatic, Instrumentation

• Yield Strength
• 205 MPa (SS304)

• Application
• other, Water, Chemical, Oil & Gas Pipe Connections

• Bend Radius
• As per standard fitting size

• Color
• Silver

• Connection
• Other, Welded & Threaded

• Connection Type
• Male/Female, Flanged, Socket Weld

• Diameter
• 3 mm to 300 mm

• Flexibility
• Rigid

• Length
• Standard & Custom Lengths

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L

• Outer Diameter
• 1/8 inch to 12 inch

• Product Type
• Other, SS Pipe Fittings

• Rated Pressure
• Up to 15 MPa

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Union, Coupling, Reducer, Nipple

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -100C to 600C

• Tensile Strength
• 515 MPa min.

• Thickness
• 1 mm to 5 mm

• Thread Type
• BSP, NPT

• Tolerance
• 0.05 mm

• Usage
• Industrial & Plumbing

• Yield Strength
• 205 MPa min.

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Marine

• Bend Radius
• As per fitting type & size

• Coating Type
• None/Plain

• Color
• Silver/Grey Metallic

• Connection
• Other, Welded, Threaded, Socket Weld

• Connection Type
• Male/Female Thread, Flanged, Butt Weld

• Diameter
• 6 mm to 630 mm

• Flexibility
• Rigid

• Length
• Customizable as per client requirement

• Material
• Other , Monel (Nickel-Copper Alloy)

• Material Grade
• Monel 400, Monel K500

• Outer Diameter
• up to 630 mm

• Product Type
• Other, Pipe Fittings

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal-to-metal, Optional PTFE/Gasket

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Cap, Union (as per requirement)

• Standard
• Other, ASTM B366/B564

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 425C

• Tensile Strength
• 480 MPa (Minimum)

• Thickness
• 1 mm to 20 mm

• Thread Type
• NPT, BSP, BSPT, Metric

• Tolerance
• 0.02 mm

• Usage
• Industrial Piping, Chemical Processing, Marine Engineering

• Yield Strength
• 170 MPa (Minimum)

• Application
• other, Pipeline, Gas, Water, Oil, Chemical Process

• Bend Radius
• As Per Standard

• Color
• Silver

• Connection
• Other, Threaded / Welded

• Connection Type
• Male/Female, Socket Weld, Butt Weld

• Diameter
• 6 mm to 114 mm

• Flexibility
• Rigid

• Length
• Up to 6 Inch

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS202

• Outer Diameter
• 1/4 inch to 4 inch

• Product Type
• Other, SS Fittings

• Rated Pressure
• Up to 150 PSI

• Sealing Type
• Metal-to-metal, PTFE Gasket

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Reducer, Union, Nipple

• Standard
• Other, ASTM A403, ANSI B16.9, DIN, JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 250C

• Tensile Strength
• 515 MPa

• Thickness
• Schedule 5s to 40s

• Thread Type
• BSP, NPT

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Chemical, Water Supply, Industrial

• Yield Strength
• 205 MPa

• Application
• other, Chemical Processing, Oil & Gas, Power Generation, Aerospace, Marine

• Bend Radius
• As per fitting type and standard

• Coating Type
• None (supplied bare as Inconel is corrosion resistant)

• Color
• Silver / Metallic Grey

• Connection
• Other, Welded, Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 3.18 mm to 323.9 mm

• Flexibility
• Rigid

• Length
• As required / Custom lengths

• Material
• Other , Inconel (Nickel-Chromium Alloy)

• Material Grade
• Inconel 600 / 601 / 625 / 800 / 825

• Outer Diameter
• 1/8 NB to 12 NB (custom sizes available)

• Product Type
• Other, Inconel Fittings

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to metal / Gasket as required

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Reducer, Cap, Union, Nipple, Cross, Plug, Adapter

• Standard
• Other, ASTM B366, ASME SB366

• Surface Treatment
• Other, Polished / Bright Annealed

• Temperature Range
• -196C to 982C

• Tensile Strength
• 758 MPa min

• Thickness
• Schedule 10S/20/40/80/160

• Thread Type
• NPT, BSP, BSPT

• Tolerance
• As per standard

• Usage
• High temperature & high pressure piping systems

• Yield Strength
• 345 MPa min

• Application
• other, Milk and Liquid Transfer, Process Lines

• Bend Radius
• According to fitting type

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Welded / Clamp / Threaded

• Connection Type
• Tri-Clamp / Weld / Thread

• Diameter
• 25 mm - 150 mm

• Flexibility
• Rigid

• Length
• As per requirement

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1 to 6 (Inches)

• Product Type
• Other, Dairy Fittings

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket (EPDM/Silicone) at joints

• Section Shape
• Other, Cylindrical

• Shape
• Other, Round / Pipe Fittings

• Standard
• Other, DIN, SMS, ISO, 3A, IDF

• Surface Treatment
• Other, Polished / Mirror Finish

• Temperature Range
• -20C to +180C

• Tensile Strength
• 520 MPa

• Thickness
• 1.5 mm - 4 mm

• Thread Type
• BSP / NPT

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food, Beverage Industries

• Yield Strength
• 210 MPa

• Application
• other, Oil & Gas, Chemical, Petrochemical, Power, Marine, Aerospace

• Bend Radius
• As per standard or custom

• Coating Type
• Uncoated / Protective Coating on Demand

• Color
• Silver / Metallic

• Connection
• Other, Welded, Threaded

• Connection Type
• Socket Weld, Butt Weld, Threaded

• Diameter
• Customized as per requirement

• Flexibility
• Rigid

• Length
• Up to 6 meters or customized

• Material
• Titanium

• Material Grade
• Gr.1, Gr.2, Gr.5, Gr.7, Gr.9, Gr.12

• Outer Diameter
• 1/8 to 24 (3.2 mm - 610 mm)

• Product Type
• Other, Titanium Fittings

• Rated Pressure
• Class 150 to 2500, PN6 to PN400

• Sealing Type
• Metal-to-Metal, Gasket Sealed

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Cap, Nipple, Union

• Standard
• Other, ASTM B363 / ASME SB363, DIN, JIS, EN

• Surface Treatment
• Other, Polished / Pickled / Sand Blasted

• Temperature Range
• -253C to +400C

• Tensile Strength
• min. 345 MPa

• Thickness
• 1 mm - 12 mm

• Thread Type
• NPT, BSP, BSPT, Metric

• Tolerance
• 0.01 mm

• Usage
• Industrial Piping, Chemical Processing

• Yield Strength
• min. 275 MPa

• Application
• other, Oil & Gas, Chemical, Water Supply, Food Processing

• Bend Radius
• Standard as per fitting type

• Coating Type
• Uncoated / Mirror Finish / Satin Finish

• Color
• Silver

• Connection
• Other, Welded, Threaded, Socket Weld

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 15 mm - 600 mm

• Flexibility
• Rigid

• Length
• As per requirement

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L, SS202

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, SS Pipe Fittings

• Rated Pressure
• Up to 3000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Union, Cap

• Standard
• Other, ASTM A403 / ANSI B16.9 / B16.11

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 870C

• Tensile Strength
• 515 MPa min

• Thickness
• 1 mm - 10 mm

• Thread Type
• NPT, BSP, BSPT

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Industrial, Construction

• Yield Strength
• 205 MPa min

• Application
• other, Water, Gas, Oil, Steam

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Threaded (NPT)

• Connection Type
• Male Threaded, Female Threaded

• Diameter
• 1/8 inch to 4 inch

• Flexibility
• Rigid

• Length
• Custom as per fitting type

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L

• Outer Diameter
• 1/8 to 4 (DN6-DN100)

• Product Type
• Other, NPT Threaded Fittings

• Rated Pressure
• 150 PSI to 3000 PSI

• Sealing Type
• Threaded Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Adapter, Cap, Plug

• Standard
• Other, ASTM A182 / ASTM A403

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -20C to +400C

• Tensile Strength
• 515 MPa (min)

• Thickness
• Schedule 40, Schedule 80

• Thread Type
• NPT (National Pipe Taper)

• Tolerance
• 0.05 mm

• Usage
• Plumbing, Industrial Piping, Chemical Processing

• Yield Strength
• 205 MPa (min)

• Application
• other, Oil & Gas, Chemical, Water Supply

• Coating Type
• Anti-corrosive

• Color
• Silver

• Connection
• Other, Welded, Bolted

• Connection Type
• Welded/Bolted

• Diameter
• 150 mm

• Flexibility
• Rigid

• Material
• Stainless Steel

• Material Grade
• SS 304/316

• Outer Diameter
• 150 mm

• Product Type
• Other, Pipe Flange

• Rated Pressure
• 150 lbs

• Sealing Type
• Gasket

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ANSI B16.5

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 600C

• Tensile Strength
• 550 MPa

• Thickness
• 12 mm

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting

• Yield Strength
• 240 MPa

• Application
• other, Instrumentation, Petrochemical, Gas and Oil Industries

• Coating Type
• Electropolished / Passivated

• Color
• Silver

• Connection
• Other, Threaded / Compression

• Connection Type
• Male x Female, Female x Female, Male x Male

• Diameter
• 1/8 to 2

• Flexibility
• Rigid

• Length
• Standard and Custom Lengths

• Material
• Stainless Steel

• Material Grade
• SS316 / SS304

• Outer Diameter
• 1/8 to 2 (custom sizes available)

• Product Type
• Other, Instrumentation Union Fitting

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Hex / Straight Union

• Standard
• Other, ASTM A276 / AISI 316

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 515 MPa (min)

• Thickness
• As per size specification

• Thread Type
• NPT / BSP / Metric

• Tolerance
• 0.1 mm

• Usage
• Pipe and Tube Joining

• Yield Strength
• 205 MPa (min)

• Application
• other, Hydraulic & Pneumatic Systems, Instrumentation

• Bend Radius
• As per tube size - typically 2x OD minimum

• Coating Type
• None / Self-finish

• Color
• Silver

• Connection
• Other, Compression / Threaded / Welded

• Connection Type
• Ferrule, Threaded, Welded

• Diameter
• 3 mm to 50 mm

• Flexibility
• Rigid

• Length
• Custom / Standard Cut Lengths

• Material
• Other , Stainless Steel 316

• Material Grade
• AISI 316 / UNS S31600

• Outer Diameter
• 1/8 to 2 (3.17 mm to 50.8 mm)

• Product Type
• Other, Tube Fittings

• Rated Pressure
• Up to 6000 psi (Depending on Size & Design)

• Sealing Type
• Metal to Metal / Ferrule

• Section Shape
• Round

• Shape
• Other, Straight, Elbow, Tee, Cross, Reducer (varies by fitting)

• Standard
• Other, ASTM A276 / A182 / ASME B16.11

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to +600C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 1 mm to 4 mm (or as specified)

• Thread Type
• NPT, BSP, Metric Threads

• Tolerance
• 0.05 mm

• Usage
• Industrial, Plumbing, Chemical, Oil & Gas

• Yield Strength
• 205 MPa (min)

• Application
• other, Gas, Oil, Chemical, Power, Hydraulic, Water, Instrumentation

• Bend Radius
• As per tube specifications

• Coating Type
• None (bare polished steel)

• Color
• Silver

• Connection
• Other, Compression

• Connection Type
• Double Ferrule Compression

• Diameter
• 3 mm to 50 mm

• Flexibility
• Rigid

• Length
• Customizable as per requirement

• Material
• Stainless Steel

• Material Grade
• SS 304 / 316 / 316L

• Outer Diameter
• 1/8 to 2 (3 mm to 50 mm)

• Product Type
• Other, Double Ferrule Compression Tube Fitting

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal Seal

• Section Shape
• Round

• Shape
• Other, Straight, Elbow, Tee, Cross (various options)

• Standard
• Other, ASTM, DIN, ISO, JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to +400C

• Tensile Strength
• 520 MPa (min)

• Thickness
• 1 mm to 4 mm (as per requirement)

• Thread Type
• NPT, BSP, BSPT, UNF, Metric

• Tolerance
• 0.05 mm

• Usage
• Pipe & Tube Fitting

• Yield Strength
• 210 MPa (min)

• Application
• other, Hydraulic systems, Industrial Machinery, Chemical Plants

• Bend Radius
• According to fitting specifications

• Coating Type
• No additional coating, natural finish

• Color
• Silver

• Connection
• Other, Male, Female, Compression, Ferrule

• Connection Type
• Threaded, Welded, Flared

• Diameter
• 6 mm to 50 mm

• Flexibility
• Rigid

• Length
• Customized as per requirement

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L

• Outer Diameter
• 6 mm - 50 mm

• Product Type
• Other, Hydraulic Fitting

• Rated Pressure
• Up to 6000 psi (420 bar)

• Sealing Type
• O-Ring, Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Straight, Reducer (various shapes available)

• Standard
• Other, DIN, ISO, SAE, ASTM, JIC

• Surface Treatment
• Other, Polished, Passivated

• Temperature Range
• -40C to +250C

• Tensile Strength
• Min. 550 MPa (for SS304)

• Thickness
• 1.5 mm to 5 mm

• Thread Type
• BSP, NPT, Metric, UNF

• Tolerance
• 0.01 mm

• Usage
• Hydraulic pipe connections, high pressure pipelines

• Yield Strength
• Min. 210 MPa (for SS304)

• Application
• other, Chemical, Gas, Oil & Petrochemical Industries

• Bend Radius
• As per tube specification

• Color
• Silver

• Connection
• Other, Compression

• Connection Type
• Double Ferrule Compression

• Diameter
• 3 mm to 50 mm

• Flexibility
• Rigid

• Length
• Custom/Standard as per requirement

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316 / SS 316L

• Outer Diameter
• 1/8 to 2 (3 mm to 50 mm)

• Product Type
• Other, Double Ferrule Fittings

• Rated Pressure
• up to 6,000 psi (400 bar)

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Straight, Elbow, Tee, Cross, Union

• Standard
• Other, ASTM A276 / ASME SA276 / DIN 2353

• Surface Treatment
• Other, Polished / Passivated

• Temperature Range
• -54C to 400C

• Tensile Strength
• 515-620 MPa

• Thickness
• 1.2 mm - 4 mm (depending on size)

• Thread Type
• NPT, BSPT, BSP, Metric

• Tolerance
• 0.1 mm

• Usage
• Hydraulic, Pneumatic, Instrumentation Systems

• Yield Strength
• 205-260 MPa

• Application
• other, Pipe and Tube Fittings

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Ferrule Compression

• Connection Type
• Double Ferrule Compression

• Diameter
• 3 mm - 50 mm

• Flexibility
• Rigid

• Length
• Standard/Custom

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/8 to 2 (3 mm to 50 mm)

• Product Type
• Other, Double Ferrule Union

• Rated Pressure
• Up to 6000 psi (414 bar)

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Union

• Standard
• Other, ASTM A276 / AISI 304, 316

• Surface Treatment
• Other, Polished

• Temperature Range
• -40C to 400C

• Tensile Strength
• 515 MPa min (for SS 316)

• Thickness
• As per requirement

• Tolerance
• 0.1 mm

• Usage
• Instrumentation, Hydraulic, Pneumatic Applications

• Yield Strength
• 205 MPa min (for SS 316)

• Application
• other, Connecting Pipes/Tubes in Instrumentation Systems

• Coating Type
• Electro-polished / Natural Finish

• Color
• Metallic Silver

• Connection
• Other, Threaded

• Connection Type
• Male / Female / Union / Adaptor

• Diameter
• 3 mm to 25 mm

• Flexibility
• Rigid

• Length
• 20 mm to 100 mm

• Material
• Other , Stainless Steel (SS316/SS304)

• Material Grade
• SS316, SS304

• Outer Diameter
• 1/8 to 1 (3 mm to 25 mm)

• Product Type
• Other, Instrumentation Adaptor Fittings

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Hexagonal / Cylindrical / Customized

• Standard
• Other, ASTM, ASME, DIN, ISO

• Surface Treatment
• Other, Polished / Passivated

• Temperature Range
• -20C to +400C

• Tensile Strength
• 515 MPa min (for SS316)

• Thickness
• 1.5 mm - 6 mm (as per requirement)

• Thread Type
• BSP, NPT, BSPT, UNF

• Tolerance
• 0.02 mm

• Usage
• Instrumentation, Process Control, Oil & Gas, Chemical and Pharma Industries

• Yield Strength
• 205 MPa min (for SS316)

• Application
• other, Pharmaceutical, Food & Beverage, Chemical, Water Treatment, Oil & Gas

• Color
• Silver

• Connection
• Other, Ferrule

• Connection Type
• Compression / Ferrule

• Diameter
• Varies as per size

• Flexibility
• Rigid

• Length
• Standard as per fitting size

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/4 inch to 2 inch (custom sizes available)

• Product Type
• Other, Equal Ferrule Tee

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASTM A403/ANSI B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 520 MPa (for SS304)

• Thickness
• 1.5 mm to 3 mm (as per requirement)

• Thread Type
• N/A (ferrule connection, non-threaded)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting/Fluid Transfer

• Yield Strength
• 205 MPa (for SS304)

• Application
• other, Plumbing, Gas, Chemical Processing

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Female Thread

• Diameter
• 1/8 inch to 2 inch

• Flexibility
• Rigid

• Length
• 25 mm

• Material
• Stainless Steel

• Material Grade
• SS 304/316

• Outer Diameter
• 12 mm

• Product Type
• Other, Female Connector

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Other, Circular

• Shape
• Other, Hexagonal

• Standard
• Other, DIN/ASTM/BS/JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +220C

• Tensile Strength
• 550 MPa (min)

• Thickness
• 4 mm (approx)

• Thread Type
• BSP/NPT

• Tolerance
• 0.05 mm

• Usage
• Pipe Fittings/Fluid Handling

• Yield Strength
• 210 MPa (min)

• Application
• other, Hydraulic, Pneumatic, Chemical, Instrumentation Lines

• Bend Radius
• Not Applicable (Straight Connector)

• Coating Type
• None / Natural Finish

• Color
• Metallic Silver

• Connection
• Other, Threaded / Tube Fitting

• Connection Type
• Tube to Tube (Bulkhead)

• Diameter
• As specified (3 mm to 50 mm)

• Flexibility
• Rigid

• Length
• Customizable (typically 40 mm - 120 mm)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• Available from 1/8 to 2 (3 mm to 50 mm)

• Product Type
• Other, Bulk Head Union Equal Straight Connector

• Rated Pressure
• Up to 6000 PSI (413 Bar)

• Sealing Type
• Double Ferrule / Metal-to-Metal

• Section Shape
• Other, Cylindrical

• Shape
• Other, Straight

• Standard
• Other, ASTM A276 / ASME SA276

• Surface Treatment
• Other, Polished / Passivated

• Temperature Range
• -54C to 400C

• Tensile Strength
• 515 MPa minimum (for SS316)

• Thickness
• Designed as per requirement (typically 1.5 mm - 3 mm)

• Thread Type
• NPT / BSPT / BSP / Metric

• Tolerance
• 0.05 mm

• Usage
• Fluid, Gas, and Air Coupling

• Yield Strength
• 205 MPa minimum (for SS316)

• Application
• other, Industrial/Plumbing/Gas/Instrumentation

• Color
• Silver

• Connection
• Other, Ferrule

• Connection Type
• Compression

• Diameter
• 6 mm - 50 mm

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316

• Outer Diameter
• 6 mm to 50 mm

• Product Type
• Other, Ferrule Tee

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASTM A276 / A182

• Surface Treatment
• Other, Polished

• Temperature Range
• -50C to +250C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 1 mm - 3 mm

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting

• Yield Strength
• 205 MPa (min)

• Application
• other, Pipe Joining, Fluid Handling, High Pressure Applications

• Bend Radius
• As per fitting type and standard

• Coating Type
• Epoxy, Zinc Coating, Black Oxide

• Color
• Black, Silver

• Connection
• Other, Socket Weld, Threaded

• Connection Type
• Screwed (Threaded), Socket Weld

• Diameter
• 6 mm to 100 mm

• Flexibility
• Rigid

• Length
• Custom as per fitting

• Material
• Other , Carbon Steel, Stainless Steel, Alloy Steel

• Material Grade
• ASTM A105, A182 F304, F316

• Outer Diameter
• 1/8 inch to 4 inch (6 mm to 100 mm)

• Product Type
• Other, Forged Pipe Fittings

• Rated Pressure
• 2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs

• Sealing Type
• Metal-to-metal, Threaded Sealing

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Union, Nipple, Cap

• Standard
• Other, ASTM A105, ASTM A182, ASME B16.11, MSS-SP-97

• Surface Treatment
• Other, Black Painted, Galvanized, Anti-Rust Oil

• Temperature Range
• -20C to 450C

• Tensile Strength
• 415 MPa minimum (varies by material)

• Thickness
• Sch 10 to Sch XXS

• Thread Type
• NPT, BSP

• Tolerance
• 0.5 mm

• Usage
• Industrial, Plumbing, Oil & Gas

• Yield Strength
• 205 MPa minimum (varies by material)

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Chemical Industries, Water Treatment

• Coating Type
• Optional (Electrogalvanized / Anti-rust Oil)

• Color
• Silver / Grey

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• 1/8 NB to 4 NB

• Flexibility
• Rigid

• Length
• 25 mm to 150 mm (customizable)

• Material
• Other , Stainless Steel / Carbon Steel / Alloy Steel

• Material Grade
• A105, SS304, SS316, F304, F316, F321, F11, F22 (as per requirement)

• Outer Diameter
• From 1/8 to 4 (3.18 mm to 101.6 mm)

• Product Type
• Other, Socket Weld Half Coupling

• Rated Pressure
• Class 3000 / Class 6000 / Class 9000

• Sealing Type
• Butt Joint Seal

• Section Shape
• Other, Cylindrical / Circular

• Shape
• Round

• Standard
• Other, ANSI B16.11, MSS SP-79, BS3799, ASME B16.11

• Surface Treatment
• Other, Polished / Shot Blasted / Sand Blasted / Pickled

• Temperature Range
• -20C to 200C (Material Dependent)

• Tensile Strength
• As per material grade (e.g., 485 MPa for ASTM A105)

• Thickness
• Schedule 40 / Schedule 80 / Schedule 160

• Thread Type
• N/A (Socket Weld, no threading)

• Tolerance
• 0.05 mm

• Usage
• Pipe Fittings / Industrial Applications

• Yield Strength
• As per material grade (e.g., 250 MPa for ASTM A105)

• Application
• other, Oil & Gas, Chemical, Petrochemical, Power Plant, Construction

• Bend Radius
• Standard as per ASME/MSS

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 1/2 to 24

• Flexibility
• Rigid

• Length
• Custom as per Requirement

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 to 24 (DN15 to DN600)

• Product Type
• Other, Weldolet

• Rated Pressure
• 150# to 2500#

• Sealing Type
• Welding Seal

• Section Shape
• Round

• Shape
• Other, Branch Fitting

• Standard
• Other, ASME B16.9 / MSS SP-97

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +600C

• Tensile Strength
• 515 MPa min

• Thickness
• Sch10 to Sch160

• Tolerance
• 0.5 mm

• Usage
• Pipe Branch Connection

• Yield Strength
• 205 MPa min

• Application
• other, Pipeline systems, Fluid transfer

• Bend Radius
• 90 degree tee

• Coating Type
• None (Stainless Steel finish)

• Color
• Silver / Metallic

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• DN15 to DN100

• Flexibility
• Rigid

• Length
• As per standard or custom

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 Inch to 4 Inch

• Product Type
• Other, Socket Weld Tee Fitting

• Rated Pressure
• 3000/6000 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASME B16.11 / MSS SP-83 / DIN 2605

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -20C to 200C

• Tensile Strength
• 515 MPa min (for SS304)

• Thickness
• 3 mm - 10 mm (as per requirement)

• Thread Type
• N/A (Socket Weld)

• Tolerance
• 0.1 mm

• Usage
• Industrial piping, Chemical processing, Oil & Gas

• Yield Strength
• 205 MPa min (for SS304)

• Application
• other, Industrial, Plumbing, Gas, Water, Oil

• Color
• Silver

• Connection
• Other, Male Threaded

• Connection Type
• Male

• Diameter
• 1/2 Inch (12.7 mm)

• Flexibility
• Rigid

• Length
• 30 mm

• Material
• Stainless Steel

• Material Grade
• SS316

• Outer Diameter
• 1/2 Inch (12.7 mm)

• Product Type
• Other, Male Adaptor

• Rated Pressure
• 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Hexagonal

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 515 MPa

• Thickness
• 4 mm

• Thread Type
• BSPT (British Standard Pipe Tapered)

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting, Plumbing, Hydraulic Applications

• Yield Strength
• 205 MPa

• Application
• other, Industrial, Plumbing, Oil and Gas, Water Supply

• Bend Radius
• Standard Tee, Not Applicable

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Socket Weld / Butt Weld

• Diameter
• 12.7 mm to 323.9 mm

• Flexibility
• Rigid

• Length
• Customized

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 inch to 12 inch

• Product Type
• Other, Tee Fitting

• Rated Pressure
• Up to 40 Bar (Varies by size and grade)

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Equal Tee

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa min

• Thickness
• 2 mm - 10 mm (depending on size)

• Thread Type
• N/A (Welded Fitting)

• Tolerance
• 0.1 mm

• Usage
• Pipeline Joining and Fluid Distribution

• Yield Strength
• 205 MPa min

• Application
• other, Oil & Gas, Petrochemical, Chemical, Power Plant, Water Treatment

• Coating Type
• None (Polished Only)

• Color
• Silver

• Connection
• Other, Welded & Threaded

• Connection Type
• Butt Weld / Socket Weld / Threaded

• Diameter
• 1/8 - 4

• Flexibility
• Rigid

• Length
• As per standard or customer requirements

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L, SS321

• Outer Diameter
• 1/8 to 4 (Custom sizes available)

• Product Type
• Other, Nipolet

• Rated Pressure
• Class 3000, 6000

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +600C

• Tensile Strength
• 515 MPa (min) for SS304

• Thickness
• Sch 40/Sch 80/Custom

• Thread Type
• NPT / BSP

• Tolerance
• 0.1 mm

• Usage
• Pipe Branch Connection

• Yield Strength
• 205 MPa (min) for SS304

• Application
• other, Industrial Piping, Oil & Gas, Petrochemical

• Coating Type
• Uncoated

• Color
• Silver / Metallic

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• DN15 - DN100

• Flexibility
• Rigid

• Length
• Varies as per size

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 4 inch

• Product Type
• Other, Socket Weld Cap

• Rated Pressure
• Class 3000, Class 6000

• Sealing Type
• Butt Seal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -20C to 550C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 3 mm to 10 mm

• Tolerance
• 0.1 mm

• Usage
• Piping End Cap, Sealing Pipe End

• Yield Strength
• 205 MPa (min)

• Application
• other, Oil & Gas, Petrochemical, Marine, Power Generation

• Bend Radius
• As per standard fitting dimension

• Coating Type
• None (Bare Metal)

• Color
• Silver Metallic

• Connection
• Other, Threaded/Welded

• Connection Type
• Socket Weld / Screwed

• Diameter
• 3 mm to 100 mm

• Flexibility
• Rigid

• Length
• Custom Cut Lengths

• Material
• Other , Monel 400 (UNS N04400)

• Material Grade
• Monel 400

• Outer Diameter
• 1/8 NB to 4 NB

• Product Type
• Other, Forged Fittings

• Rated Pressure
• Class 2000/3000/6000/9000

• Sealing Type
• Metal-to-metal or gasket as required

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Union, Plug, Cap

• Standard
• Other, ASTM B564 / ASME SB564

• Surface Treatment
• Other, Polished

• Temperature Range
• -29C to 800C

• Tensile Strength
• 490 MPa min

• Thickness
• Sch 10s, 40s, 80s, XXS or as required

• Thread Type
• NPT / BSP

• Tolerance
• 0.5 mm

• Usage
• Industrial Pipe Fittings

• Yield Strength
• 170 MPa min

• Application
• other, Fluid Transportation, Corrosive Environments

• Bend Radius
• Standard as per fitting type

• Coating Type
• None (Natural Polished Finish)

• Color
• Silver

• Connection
• Other, Welded, Threaded

• Connection Type
• Screwed, Butt Weld, Socket Weld

• Diameter
• 3.18 mm to 609.6 mm

• Flexibility
• Rigid

• Length
• Up to 6 meters

• Material
• Other , 316 Stainless Steel

• Material Grade
• AISI 316 / 316L

• Outer Diameter
• 1/8 - 24 (3.18 mm - 609.6 mm)

• Product Type
• Other, Pipe Fittings

• Rated Pressure
• Up to 3000 psi

• Sealing Type
• Threaded or Welded Seal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Union, Cap, Nipple (various)

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 870C

• Tensile Strength
• 515 MPa min

• Thickness
• 1.5 mm - 10 mm

• Thread Type
• NPT/BSP

• Tolerance
• 0.05 mm

• Usage
• Industrial, Plumbing, Petrochemical, Food Processing

• Yield Strength
• 205 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power Generation, Water Treatment

• Bend Radius
• 1.5D, 3D (for elbows)

• Coating Type
• No Additional Coating

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Buttweld

• Diameter
• 12 Inch to 24 Inch

• Flexibility
• Rigid

• Length
• Customized / Standard

• Material
• Stainless Steel

• Material Grade
• SS304 / SS304L / SS316 / SS316L

• Outer Diameter
• 15 mm to 630 mm

• Product Type
• Other, Buttweld Fittings

• Rated Pressure
• Up to 3500 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Stub End

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Pickling, Annealed, Passivated

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa min (for SS304)

• Thickness
• SCH 10S, SCH 40S, SCH 80S (customizable)

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting, Plumbing, Industrial Piping

• Yield Strength
• 205 MPa min (for SS304)

• Application
• other, Chemical, Petrochemical, Oil & Gas, Power Plants

• Bend Radius
• As per fitting design

• Coating Type
• None / Customer Specified

• Color
• Metallic Silver / Grey

• Connection
• Other, Threaded / Socket Weld

• Connection Type
• Socket Weld / Screwed (NPT/BSP)

• Diameter
• As per Fitting Specification

• Flexibility
• Rigid

• Length
• Custom as per Fitting Type

• Material
• Other , Inconel (Nickel-Chromium Alloy)

• Material Grade
• Inconel 600 / 601 / 625 / 718 / 800 / 825

• Outer Diameter
• 1/8 to 4 (DN6 to DN100)

• Product Type
• Other, Forged Fittings

• Rated Pressure
• Class 2000/3000/6000 LBS

• Sealing Type
• Precision Machined

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Union, Cross, Cap

• Standard
• Other, ASTM B564 / ASME SB564

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -196C to 982C

• Tensile Strength
• Up to 965 MPa (depending on grade)

• Thickness
• Sch 10 to Sch XXS

• Thread Type
• NPT / BSP

• Tolerance
• 0.5 mm

• Usage
• High-temperature / Corrosive Environments

• Yield Strength
• Up to 550 MPa (depending on grade)

• Application
• other, Industrial, Chemical Processing, Oil & Gas, Aerospace

• Bend Radius
• Standard per fitting type

• Coating Type
• Uncoated

• Color
• Silver Grey

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• 1/2 to 4

• Flexibility
• Rigid

• Length
• Customized as per requirement

• Material
• Titanium

• Material Grade
• Titanium Gr. 2, Gr. 5, Gr. 7

• Outer Diameter
• 1/2 to 4 (12.7 mm - 101.6 mm)

• Product Type
• Other, Socketweld Fittings

• Rated Pressure
• Sch10 to Sch80

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Cap, Cross, Reducer

• Standard
• Other, ASTM B363 / ASME SB363

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -80C to +400C

• Tensile Strength
• min 344 MPa (Grade 2)

• Thickness
• 1.5 mm - 12 mm

• Tolerance
• 0.05 mm

• Usage
• Piping systems, Chemical plants, Marine industry

• Yield Strength
• min 275 MPa (Grade 2)

• Application
• other, Oil & Gas, Chemical Processing, Seawater Equipment

• Bend Radius
• As per fitting type and standard

• Coating Type
• None / Uncoated

• Color
• Metallic Silver

• Connection
• Other, Welded

• Connection Type
• Buttweld

• Diameter
• 1/2 NB - 24 NB

• Flexibility
• Rigid

• Length
• As per standard or custom

• Material
• Other , SMO 254 (UNS S31254)

• Material Grade
• SMO 254 (6Mo)

• Outer Diameter
• 1/2 - 24 (12.7 mm - 610 mm)

• Product Type
• Other, Buttweld Pipe Fittings

• Rated Pressure
• Class 150 to Class 600

• Sealing Type
• Buttweld joint (metal-to-metal)

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Cross

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -196C to +600C

• Tensile Strength
• 650 MPa

• Thickness
• Sch 10S, Sch 20, Sch 40S, Sch 80S or as required

• Thread Type
• Not Applicable (Welded)

• Tolerance
• 0.5 mm

• Usage
• Pipeline connections, Chemical and Petrochemical industry

• Yield Strength
• 300 MPa

• Application
• other, Piping, Fluid Handling, Oil & Gas

• Bend Radius
• Depends on fitting type, standard as per ASME

• Coating Type
• No special coating, natural finish

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 12.7 mm to 610 mm

• Flexibility
• Rigid

• Length
• Custom as per requirement, up to 6 meters

• Material
• Stainless Steel

• Material Grade
• SS 904L (UNS N08904)

• Outer Diameter
• 1/2 inch to 24 inch (12.7 mm to 610 mm)

• Product Type
• Other, Welded Pipe Fittings

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metal to metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cross, Stub End, Cap

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -196C to 400C

• Tensile Strength
• 490 MPa (min)

• Thickness
• 1.5 mm to 10 mm

• Thread Type
• N/A (Buttweld)

• Tolerance
• 0.5 mm

• Usage
• Chemical, Petrochemical, Power Plant, Food Processing

• Yield Strength
• 220 MPa (min)

• Application
• other, Milk Transfer, Fluid Transportation

• Bend Radius
• As per fitting type

• Coating Type
• None (natural polished stainless steel)

• Color
• Silver

• Connection
• Other, Welded, Clamp, Threaded

• Connection Type
• Tri-Clamp, Welded, Threaded

• Diameter
• 19 mm - 114 mm

• Flexibility
• Rigid

• Length
• Customizable (Standard: 100 mm - 3000 mm)

• Material
• Stainless Steel

• Material Grade
• SS304, SS316

• Outer Diameter
• 19 mm - 114 mm

• Product Type
• Other, Dairy Pipe Fittings

• Rated Pressure
• Maximum 16 bar

• Sealing Type
• Silicone or EPDM Gasket (for clamp type)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, DIN, SMS, ISO, 3A

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +180C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 1.2 mm - 3 mm

• Thread Type
• BSP, NPT (for threaded models)

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food & Beverage, Pharmaceutical Industries

• Yield Strength
• 205 MPa (min)

• Application
• other, Oil & Gas, Petrochemical, Chemical, Water, Power Plants

• Bend Radius
• 1.5D (Long Radius)

• Coating Type
• Uncoated / Custom

• Color
• Silver / Metallic

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 12.7mm - 610mm

• Flexibility
• Rigid

• Length
• Standard or as required

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 to 24 (DN15-DN600)

• Product Type
• Other, Long Radius Bend

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow/Bend

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -196C to +600C

• Tensile Strength
• 515 MPa min (for 304/316)

• Thickness
• 2mm - 12mm

• Tolerance
• 1% or as per standard

• Usage
• Industrial pipe fittings

• Yield Strength
• 205 MPa min (for 304/316)

• Application
• other, Chemical, Petrochemical, Power Generation, Marine, Pollution Control

• Bend Radius
• As Per Fitting Design

• Coating Type
• Uncoated/Natural

• Color
• Silver/Grey Metallic

• Connection
• Other, Threaded, Socket Weld

• Connection Type
• Threaded (NPT/BSPT/BSPP), Socket Weld

• Diameter
• 3.18 mm to 114.3 mm

• Flexibility
• Rigid

• Length
• Custom/Standard Lengths

• Material
• Other , Hastelloy (C22/C276/B2/X and others)

• Material Grade
• Hastelloy C276, C22, B2, X, G30, G35, C2000

• Outer Diameter
• 1/8 NB to 4 NB

• Product Type
• Other, Forged Fittings

• Rated Pressure
• 3000#, 6000#, 9000#

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Reducer, Union, Cap, Plug, Cross

• Standard
• Other, ASTM B564, ASME SB564, ANSI B16.11, MSS SP-79/83/95/97

• Surface Treatment
• Other, Polished, Shot Blasted, Pickled

• Temperature Range
• -46C to 400C

• Tensile Strength
• up to 785 MPa

• Thickness
• 2 mm to 15 mm (customizable)

• Thread Type
• NPT, BSP, BSPT, BSPP

• Tolerance
• 0.05 mm

• Usage
• Industrial Piping Systems, Chemical Processing, Oil & Gas

• Yield Strength
• up to 365 MPa

• Application
• other, Plumbing, Oil & Gas, Chemical Industry

• Bend Radius
• As per design

• Coating Type
• No Additional Coating

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Socket Weld / Threaded

• Diameter
• As per requirement

• Flexibility
• Rigid

• Length
• Custom Lengths

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, Stainless Steel Outlet

• Rated Pressure
• Class 150 - Class 3000

• Sealing Type
• Metal-to-metal Seal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 600C

• Tensile Strength
• 515 MPa (Min)

• Thickness
• Sch 10 - Sch 80

• Thread Type
• NPT / BSP

• Tolerance
• 0.05 mm

• Usage
• Pipe Branching

• Yield Strength
• 205 MPa (Min)

• Application
• other, Chemical, Marine, Oil & Gas, Petrochemical Industries

• Bend Radius
• Standard or custom per specification

• Coating Type
• None/As required

• Color
• Metallic Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 12.7mm to 610mm

• Flexibility
• Rigid

• Length
• As per standard or custom requirement

• Material
• Other , Monel (Nickel-Copper Alloy)

• Material Grade
• Monel 400, Monel K500

• Outer Diameter
• 12 (12.7mm) to 24 (610mm)

• Product Type
• Other, Buttweld Pipe Fittings

• Rated Pressure
• Up to 3000 psi (varies with size & schedule)

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Cross, Stub End

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished, Pickled

• Temperature Range
• -196C to +500C

• Tensile Strength
• 550 MPa min (Monel 400)

• Thickness
• Schedule 10S to 80S (as required)

• Thread Type
• Not Applicable (Buttweld)

• Tolerance
• 0.5mm

• Usage
• Pipeline Connection, Fluid Transfer

• Yield Strength
• 170 MPa min (Monel 400)

• Application
• other, Process Piping, Fluid Conveyance

• Bend Radius
• 1.5D

• Color
• Silver

• Connection
• Other, Tri-Clamp (TC) End

• Connection Type
• Tri-Clamp Quick Connect

• Diameter
• Varies (19 mm - 102 mm)

• Flexibility
• Rigid

• Length
• Varies by specification (typically 50 mm - 300 mm)

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 19 mm - 102 mm

• Product Type
• Other, TC End Elbow

• Rated Pressure
• 10 bar - 16 bar

• Sealing Type
• Gasket Required (Silicone/EPDM/PTFE)

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, DIN, SMS, 3A, ISO

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa (SS304)

• Thickness
• 1.2 mm - 3 mm

• Thread Type
• Not Applicable (TC End)

• Tolerance
• 0.1 mm

• Usage
• Sanitary / Food / Pharmaceutical / Dairy / Beverage

• Yield Strength
• 205 MPa (SS304)

• Application
• other, Industrial piping, Chemical plants, Pharmacy, Food processing

• Bend Radius
• 1.5D/ Custom

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Up to 610 mm

• Flexibility
• Rigid

• Length
• As per standard or customer requirement

• Material
• Stainless Steel

• Material Grade
• SS316

• Outer Diameter
• 1/2 to 24 (Custom sizes available)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• 150 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow (90)

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to +870C

• Tensile Strength
• 515 MPa min

• Thickness
• Sch 40 (standard) or customized

• Thread Type
• Not Threaded/Plain End

• Tolerance
• 0.1 mm

• Usage
• Fluid/ Gas/ Chemical transfer

• Yield Strength
• 205 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Supply

• Bend Radius
• Long Radius (1.5D of pipe diameter)

• Coating Type
• None / Self-Finish

• Color
• Silver / Metallic

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 1/2 to 24

• Flexibility
• Rigid

• Length
• Customized as per standard

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 to 24 (DN15 to DN600)

• Product Type
• Other, 180 Degree Long Radius Elbow

• Rated Pressure
• Sch 10 to Sch 80 (varies by size)

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow (180 Degree Bend)

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa (grade dependent)

• Thickness
• 2 mm - 12 mm (customizable)

• Thread Type
• N/A (Welded Connection)

• Tolerance
• 0.5 mm

• Usage
• Piping, Plumbing, Industrial Systems

• Yield Strength
• 205 MPa (grade dependent)

• Application
• other, Industrial, Plumbing, Chemical, Oil & Gas

• Bend Radius
• Standard 1D or 1.5D

• Coating Type
• No coating, Natural finish

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• DN15 - DN600

• Flexibility
• Rigid

• Length
• Customizable as per requirement

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Sch10 to Sch80 (varies by size)

• Sealing Type
• Metal-to-metal contact

• Section Shape
• Round

• Shape
• Other, Elbow, 45 Degree

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 2 mm to 20 mm (as required)

• Thread Type
• Not Applicable (Welded)

• Tolerance
• 1%

• Usage
• Pipe Fitting / Fluid Transport

• Yield Strength
• 205 MPa (min)
